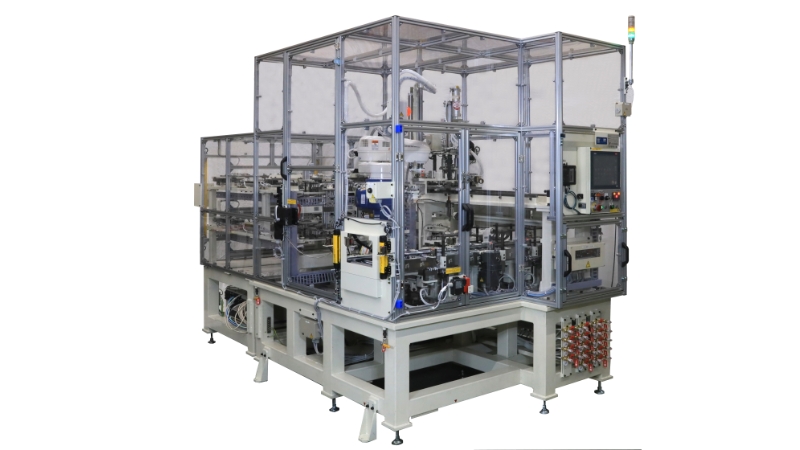

Engine head assembly machine

Cam cap assembly machine

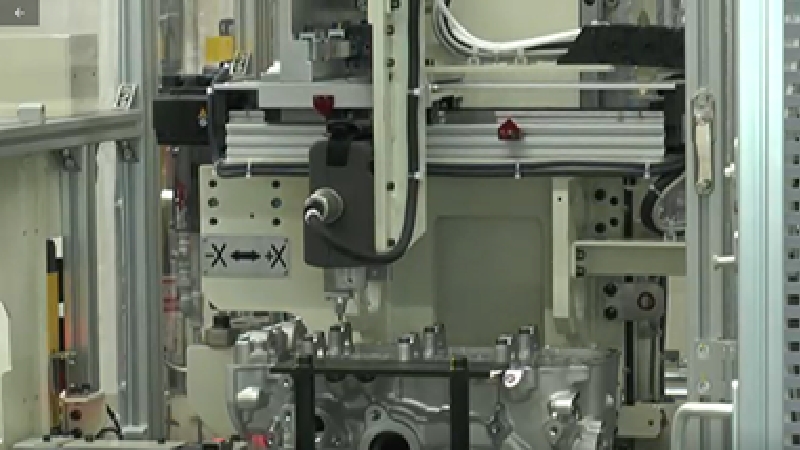

Cam caps and bolts are supplied automatically, and nut runners are automatically tightened.

Cam cap assembly machine
Cam cap assembly machine

Representative parts

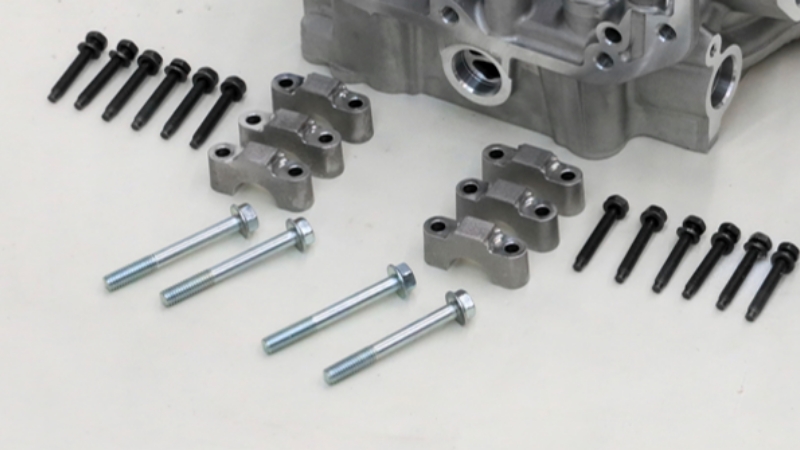

Cam caps

Cam caps

Pin rings, plugs

Features

Izumi customizes commercially-available units based on customer requirements to realize automation.

Improved productivity

  • Supports labor saving.

  • Unmanned operation and automation are possible with use of loading and unloading.

  • Machines can be directly connected to the previous or next processes.

Improved quality

  • Values for tightening torque, sealant application, and numbering, etc. are bulk managed at the equipment.

  • Measurement is performed after applying sealant by inspecting images.

Cost reductions

  • Supports labor saving.

Improved environment

  • Heavy work is reduced.

We customize products in line with your company’s requests

Main assembly machine specifications
[1] Marking unit [2] Blank conveyor [3] Nut runner

Option examples

Marking unit

[1] Marking unit

Blank conveyor

[2] Blank conveyor

Nut runner

[3] Nut runner

Machine specifications

  • Values for tightening torque, sealant application, and numbering, etc. are bulk managed at the equipment.

  • Measurement is performed after applying sealant by inspecting images.

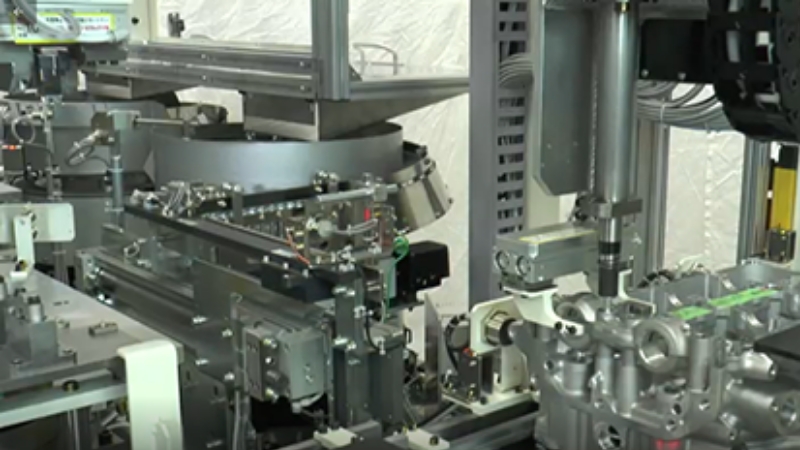

  • Products such as cam caps are removed with a picking loader and automatically supplied to the engine head.

  • A nut runner is used at the tightening process to perform temporary or final tightening.

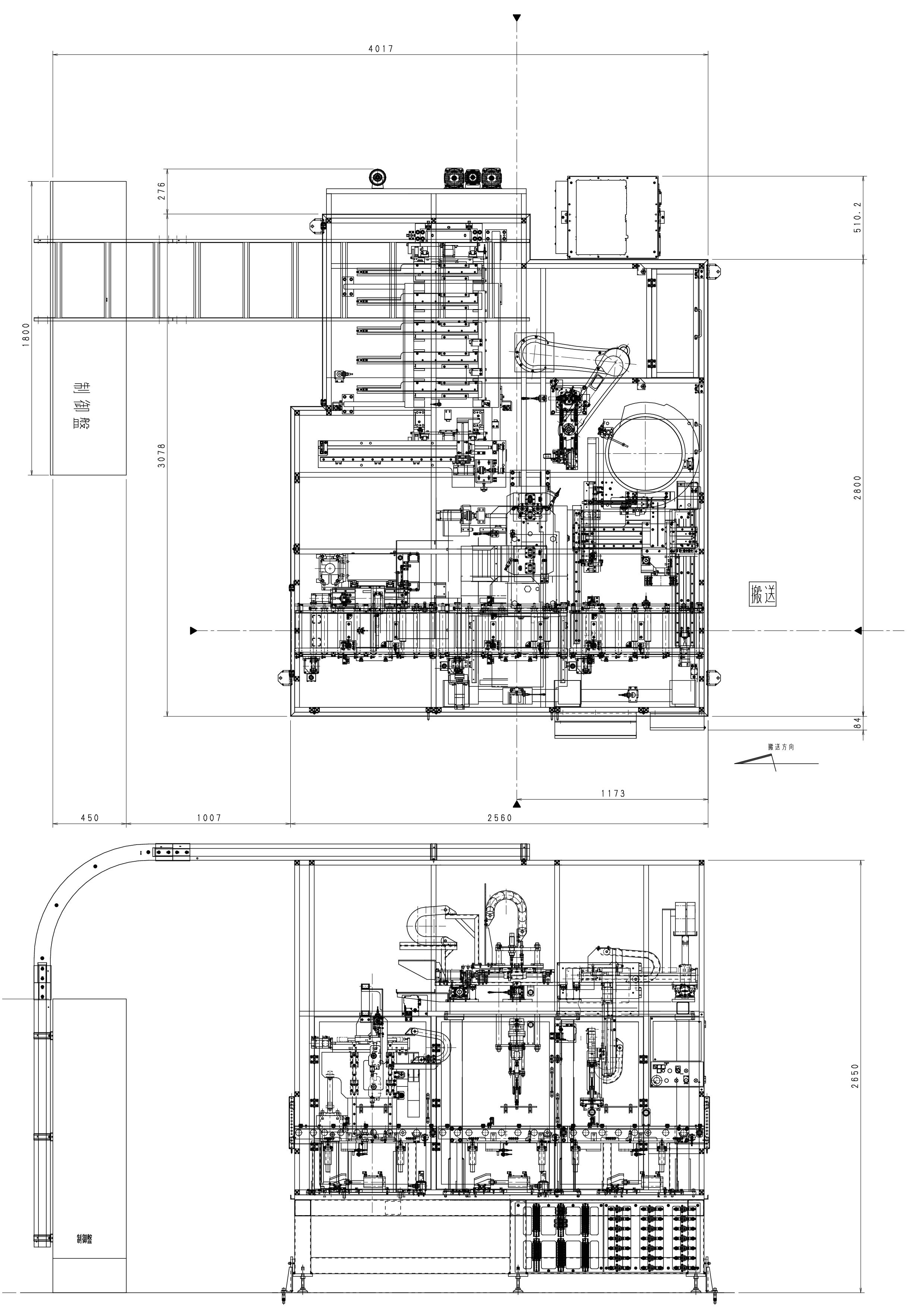

External dimension drawing
