Friction welding machine product introduction

2FW005 series

Horizontal single-head machine, vertical machine, units

High-efficiency machine compatible with both units and equipment.

2FW005HS horizontal single-head machine

This is a typical example of our compact series, even among friction welding machines. Ideal size for the bonding of small-diameter material.

Typical model: 2FW005HS

Typical model: 2FW005HS

Typical product: stud bolts

Typical product: stud bolts

Recruitment fields

Automobiles / vehicle parts

Option examples

Clamp indexing
Clamp indexing

The bonding position is moved to change the position.

2FW005VT vertical machine

With its compact installation area, this equipment is ideal for saving space.

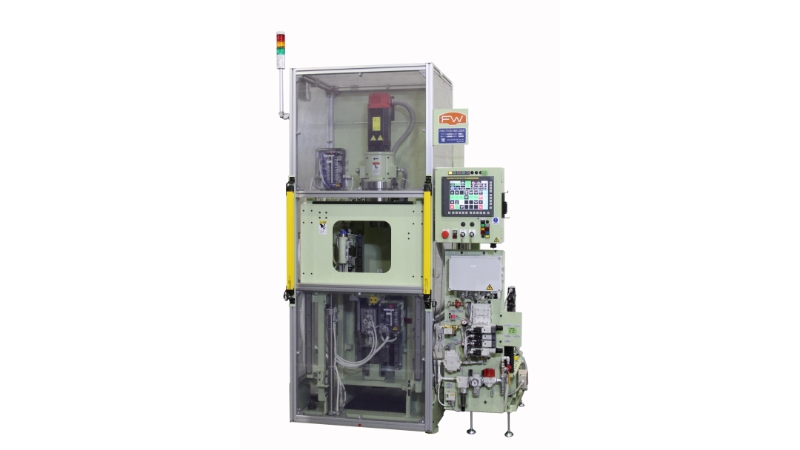

Typical model: 2FW005VT

Typical model: 2FW005VT

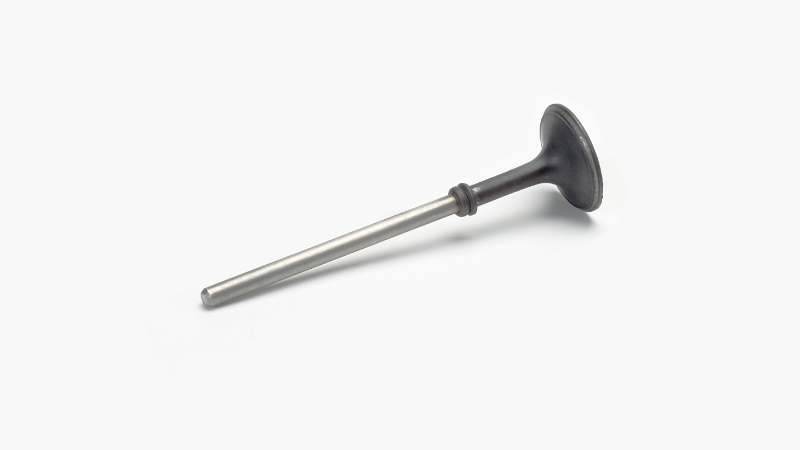

Typical product: engine valves

Typical product: engine valves

Recruitment fields

Automobiles / vehicle parts

Option examples

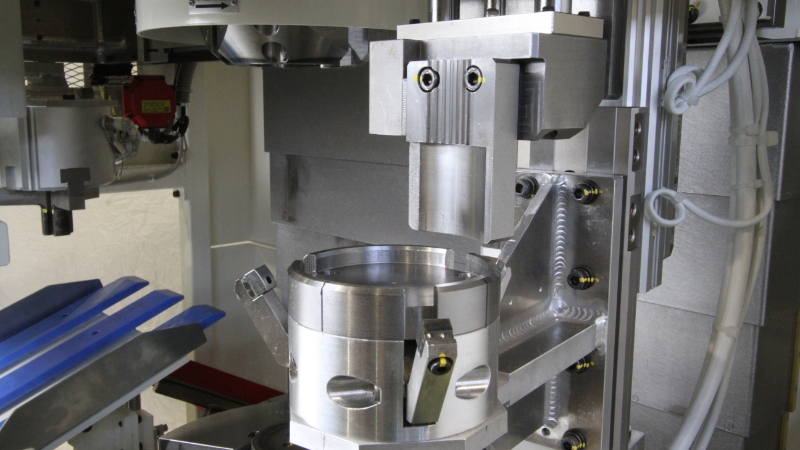

Blank supply device
Blank supply device

Blanks are automatically supplied to the spindle.

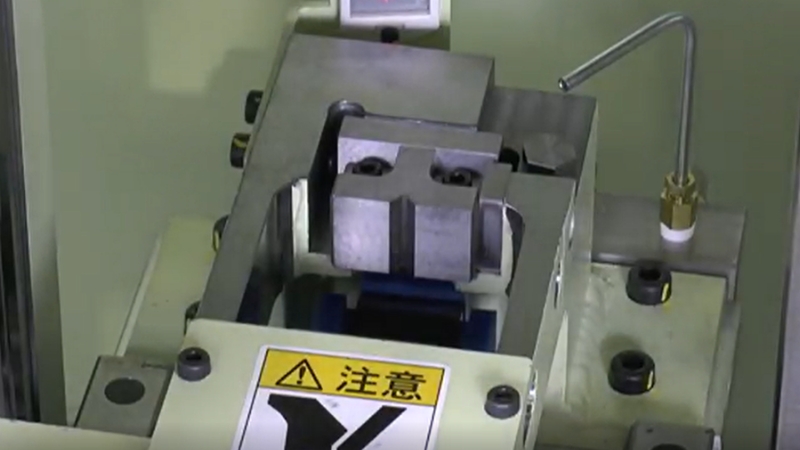

One side fixed vice clamp
One side fixed vice clamp

This one side fixed vice clamp was developed for vertical machines.

2FW005U unit

The perfect compact unit for incorporation into production lines

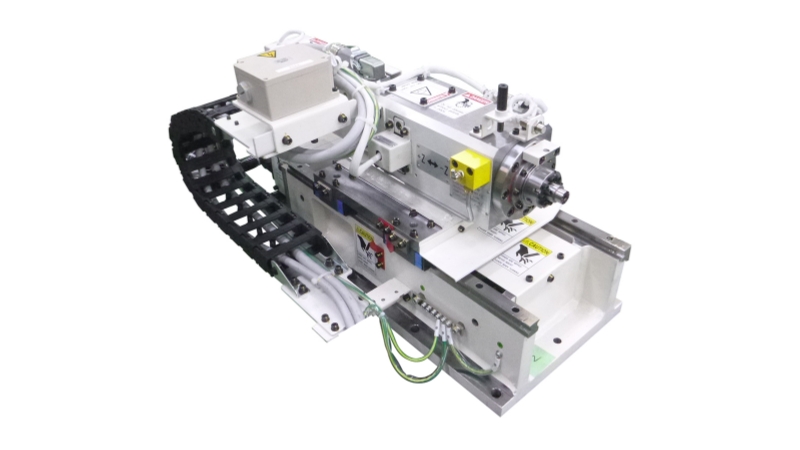

Typical model: 2FW005U

Typical model: 2FW005U

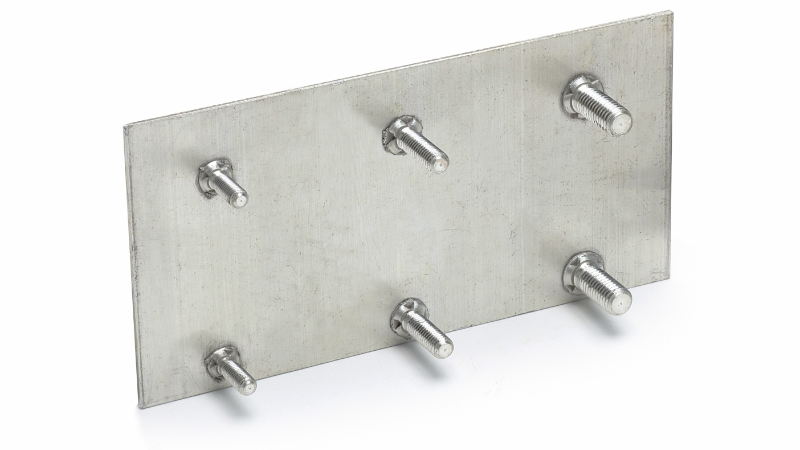

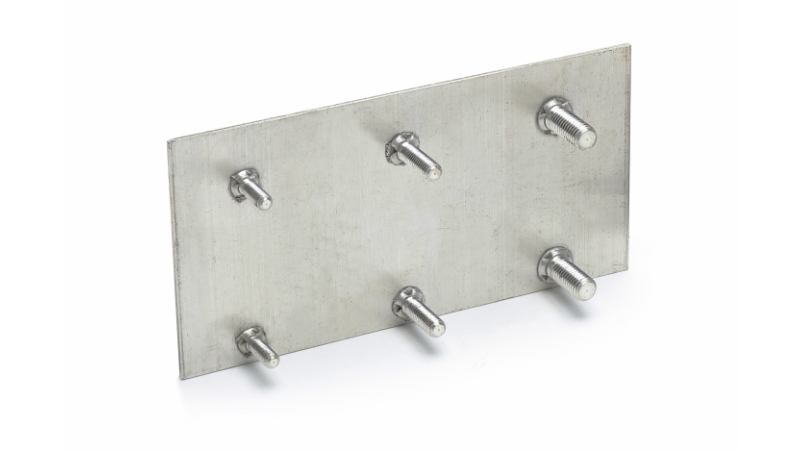

Typical product: aluminum studs

Typical product: aluminum studs

Recruitment fields

Automobiles / vehicle parts

Examples of Other Fields / Merits

Woodworking drills (gimlets)
Woodworking drills (gimlets)

SS400×S55C

Stud bolts
Stud bolts

S45C×S45C

Sewing machine needle bars
Sewing machine needle bars

STKM11A×S45C

Stud bolts
Stud bolts

SPC×S45C
