Friction welding machine product introduction

2FW045 series

Horizontal single-head machine, horizontal double-head machine, vertical machine

This diverse high-efficiency machine is widely adopted in many industries other than just the automobile industry.

2FW045HS horizontal single-head machine

This is a standard medium-size class machine.

Typical model: 2FW045HS

Typical model: 2FW045HS

Typical product: constant velocity joints

Typical product: constant velocity joints

Recruitment fields

Automobiles / vehicle parts Cutting / tool parts Machine parts Hydraulic / air pressure parts Construction machinery / agricultural machinery / production machinery parts Construction / civil engineering parts

Option examples

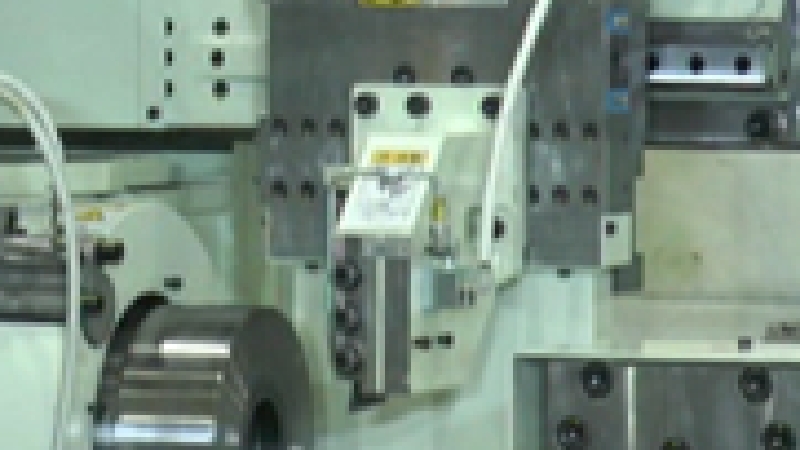

Cutting device
Cutting device

Removes burrs produced during pressure welding.

Thrust receiving stop device
Thrust receiving stop device

The thrust bearing length can be changed with a handle.

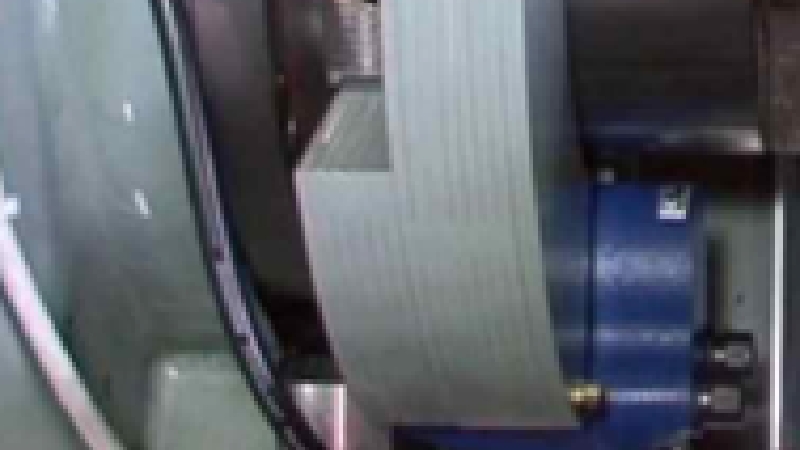

Disk brake
Disk brake

Stops spindle rotation suddenly.

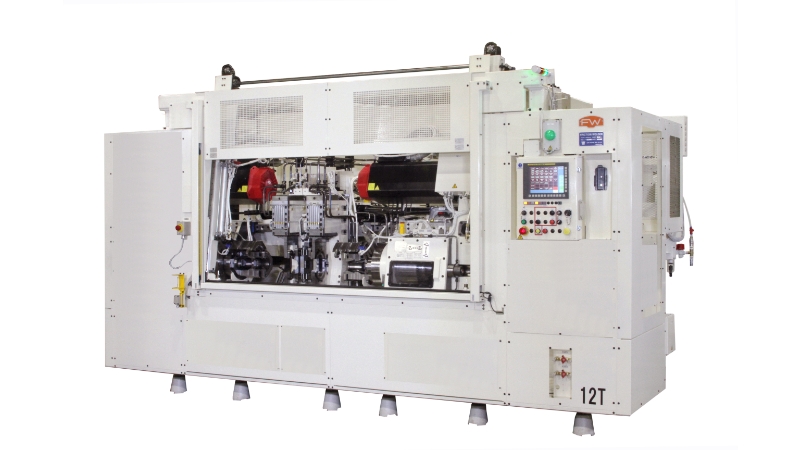

2FW045HS-XT(A) horizontal double-head machine

This friction welding machine is equipped a spindle at both sides, and is capable of simultaneous bonding at both sides with high phase accuracy.

Typical model: 2FW045HS-XTC

Typical model: 2FW045HS-XTC

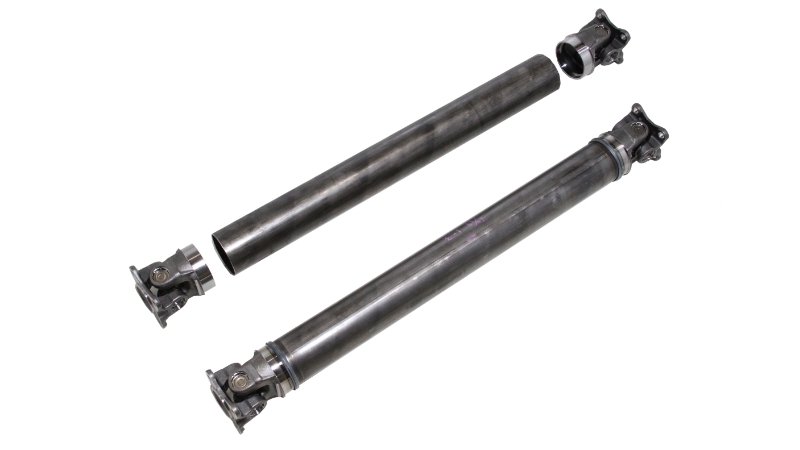

Typical product: propeller shafts

Typical product: propeller shafts

Recruitment fields

Automobiles / vehicle parts

Option examples

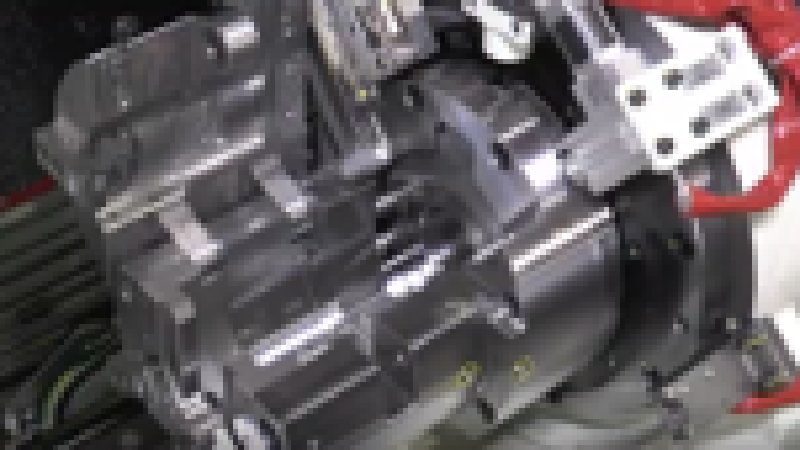

Assembly chuck
Assembly chuck

Assembled yoke can be set.

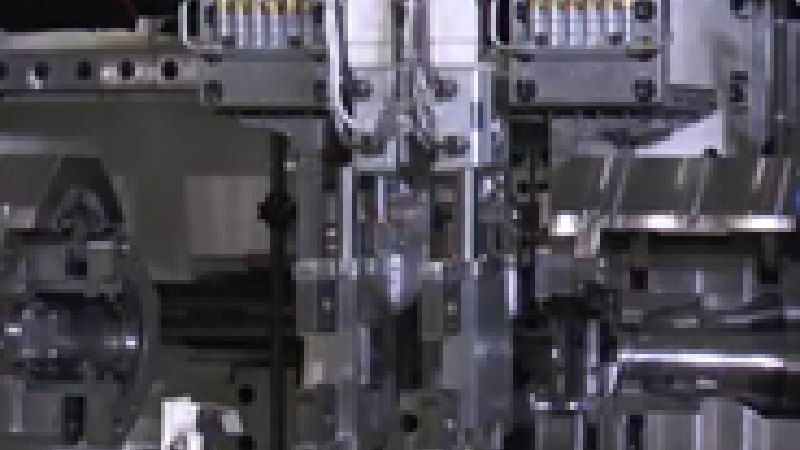

Delivery device
Delivery device

Finished parts are unloaded to the operator side.

Workpiece setting guide
Workpiece setting guide

This is a product setting guide (movable).

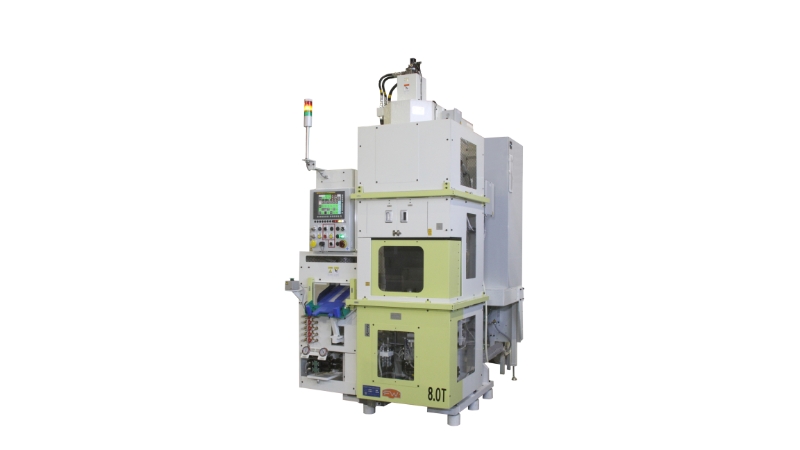

2FW045VT vertical machine

With its compact installation area, this equipment is ideal for saving space.

Typical model: 2FW045VT

Typical model: 2FW045VT

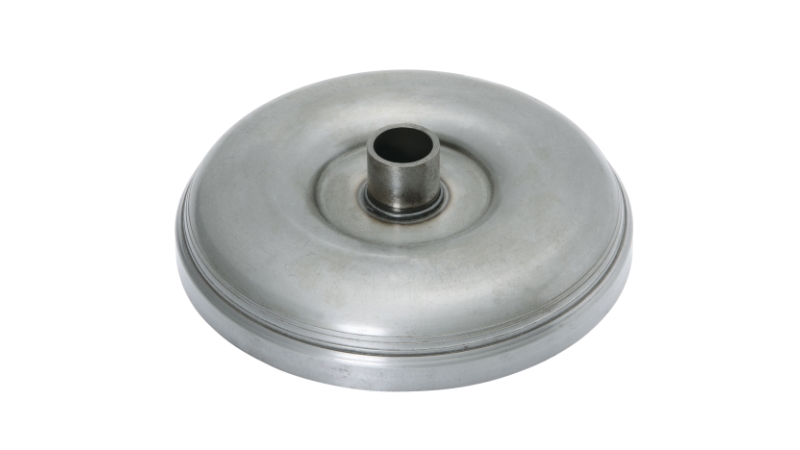

Typical product

Typical product

Recruitment fields

Automobiles / vehicle parts

Option examples

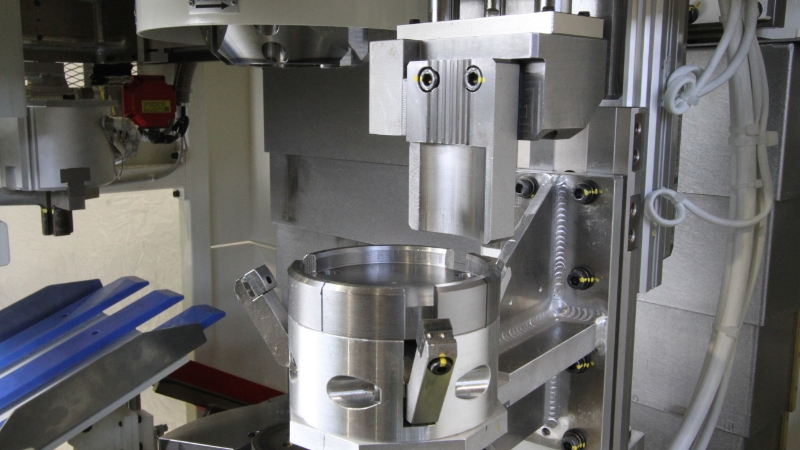

Loading device
Loading device

This machine sets blanks on the spindle automatically.

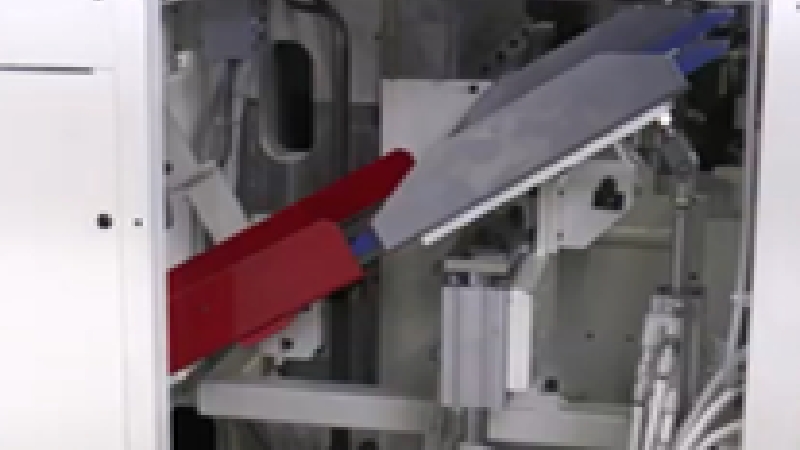

OK/NG chute
OK/NG chute

This device makes an OK or NG judgment based on pressure welding results, and changes the delivery destination.

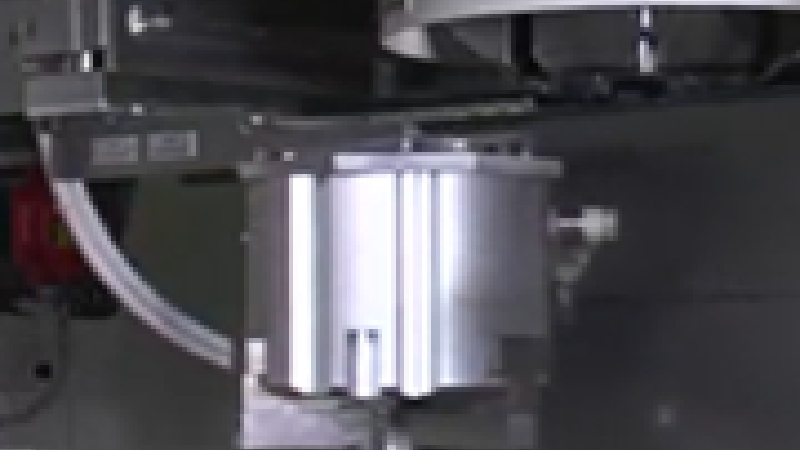

Delivery loader
Delivery loader

Finished parts are conveyed from the clamp device to the sampling post-process.

Examples of Other Fields / Merits

Differential transformers
Differential transformers

PB x SUS304 ferromagnetic material

Gate ball stick heads
Gate ball stick heads

TB35×A6063×TB35

Connectors
Connectors

C1100×C1100

Piston rods
Piston rods

S45C×S45C
