Vertical Lathe for Compressor Housing/Turbine Housing

LA08V CNC vertical lathe

This is an advanced CNC vertical lathe on which warming-up, compensation, and 1-shift cleaning have been eliminated.

External photo of LAO8V

External photo of LAO8V

LA08V video

Representative parts

Compressor housing

Compressor housing

Car air conditioner parts (swash plates), side gears, drive pinions, T/housing

Features

This machine is excellent for the machining of products compatible with 8-inch chucks.

Improved productivity

  • This product is easily operated with high reproducibility, and the same products can be produced continuously.

  • Unmanned operation and automation are possible with use of loading and unloading.

  • No compensation is required.

Improved quality

  • Thermal displacement are kept to 20 μm or less using a construction which makes it difficult to conduct heat to the head and columns.

  • No warming-up is required prior to machining.

Cost reductions

  • Its small flat surface area is perfect for compact line design.

  • Increased equipment rigidity has translated into a 20% improvement in cutter life over the previous machine.

Improved environment

  • Equipment cleaning has been reduced to once per shift.

Machine specifications

Model
LA08V
Maximum machining diameter (mm) φ150
Chuck size (inch) 8
Spindle speed (min-1) Max.3,000
Turret shape - Gang tool type
Maximum travel (mm) X (horizontal): 270
Z (vertical): 300
Spindle motor (kW) 14
Maximum electric capacity (kVA) 36
Width x depth x height
( ) includes coolant tank.
(mm) 1,200×2,008×2,256
(2,510)
Options Loading/unloading loader
Loading/unloading robot
Front automatic door
Single-axis drill unit
Auto compensation touch sensor

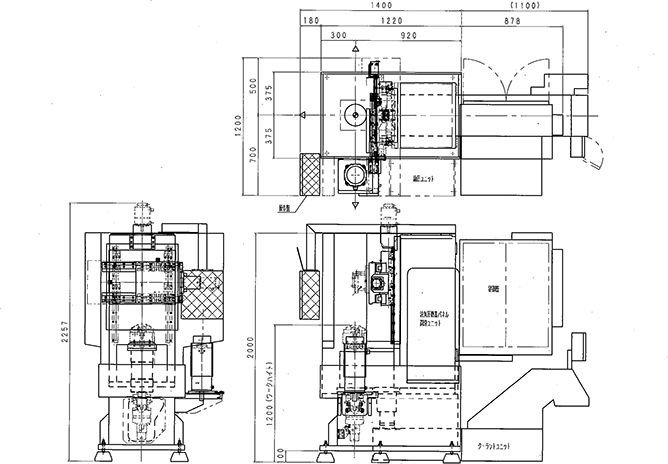

External dimension drawing

External dimension drawing

Examples of Other Fields / Merits

Drive pinion gears
Drive pinion gears

S45C or equivalent

Side gears
Side gears

S45C×S45C

Side gears
Side gears

S45C or equivalent

Swash plates
Swash plates

FCD700

Click here for list of examples
