Four-Spindle NC Machine for Swash Plates

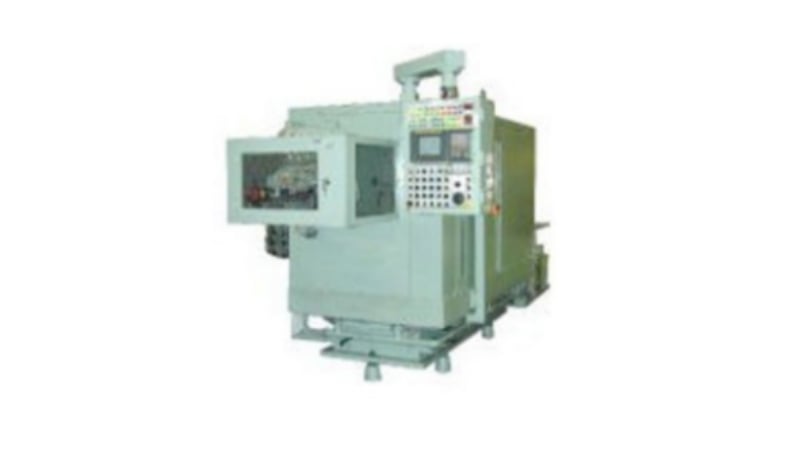

MSH40 four-spindle NC machine

This is a specialized machining system for the mass production of parts.

MSH40 four-spindle NC machine

Representative parts

Swash plates

Swash plates

Lug plates

Features

Multiple specialized machines and units based on customer requirements are connected by conveyors to realize automation.

Improved productivity

  • Improved productivity without an ATC.

  • The machine employs a turntable jig, allowing the next workpiece to be set while machining.

Improved quality

  • The machine is not equipped with an ATC, meaning no cutter change trouble.

Cost reductions

  • Supports labor saving.

  • Two workpieces can be machined simultaneously.

Examples of Other Fields / Merits

Side gears
Side gears

S45C or equivalent

Swash plates
Swash plates

FCD700

Drive pinion gears
Drive pinion gears

S45C or equivalent

Side gears
Side gears

S45C×S45C
